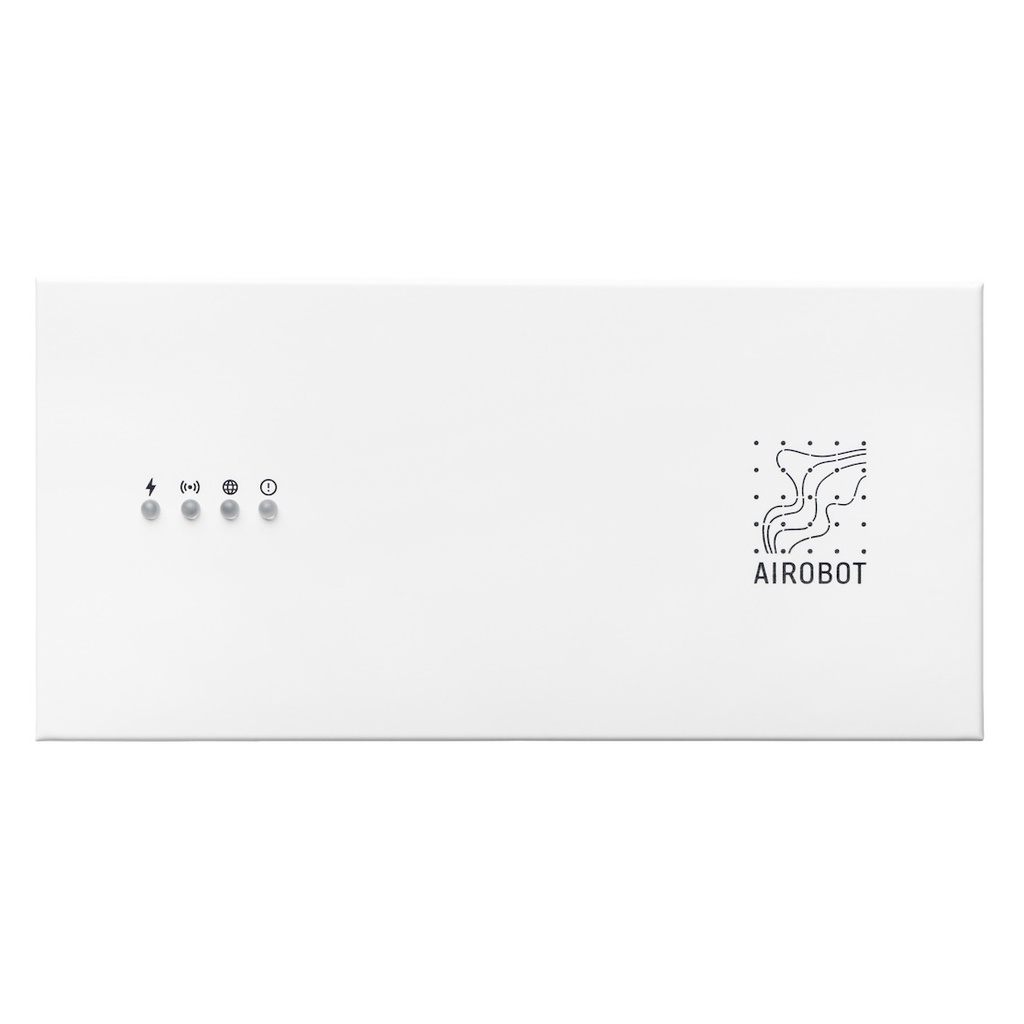

Airobot room controller A-HC-RC1 24V
One room controller allows:
- Maximum number of room sensors 8pcs
- Maximum number of heating zones 8 pcs.
- Maximum number of drives 12pcs
- Actuators 24V NC (normally closed type)
- Installed next to the heating manifold or in a box
- Room controller power supply 230V
Combined control of electric and water underfloor heating: simultaneous use with both water and electric underfloor heating
Control of water floor heating during the heating season; when switching to cooling in the summer, the water floor heating is automatically switched off and the electric floor heating is activated. - An external relay is installed in a wall socket behind the room sensor
- Underfloor cooling control capability
- Automatic switching off of underfloor cooling if the humidity in the room rises above the permitted limit (to prevent dew point formation)
- Disabling underfloor cooling by room
- Switching to cooling mode can be triggered by a signal from the heating pump or manually by the user
